GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

Product Categories

Dongguan Boges Communication Technology Co., Ltd

Contact Now

GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

Name: GPS 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black
Brand: BOGES
Price: 1 USD

Wholesale GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black from china suppliers

Brand Name : BOGES

Model Number : BGS-GPS+4G-FAKRA-2M

Certification : ISO9001,RoHs

Place of Origin : Dongguan, Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20K per day

Delivery Time : 10 days

Packaging Details : PE Bag/Carton

Frequency range : 1575.42Mhz±1.023Mhz

Impedance : 50 OHM

S.W.R : 1.5 MAX

Amplifiers gain : 28 dBi

Connector : Fakra C & Fakra D

Cable : RG 174 Cable Black

cable length : 2 M

Working Temp : -40~+85℃

Vibration : Sine sweep Lg(0~p)10~50~10HZ each Axis

Humidity : 95%~100%RH

Contact Now

GPS + 4G Combine 2 in 1 Antenna With Fakra connector RG174 2M Length

Application

▪ Global Positioning System

▪ GARMIN / Marine Positioning System

▪ GPS / GSM Car Tracking System

Feature

▪ RoHS Compliant

▪ Low V.S.W.R. / Low Loss Design / High Gain

▪ High Efficiency and Sensitivity

▪ Low Loss RF Coaxial Connector Cable Feed

▪ Water Proof Design

Specification

GPS Electrical Specification
Center Frequency (MHz)	1575.42MHZ
Band width (MHz)	10MHZ min (return loss-10dB)
Gain (dBi)	5dBic @zenith Mounted on 70mmx70mm ground plane
Input Impendence (Ω)	50Ω
V.S.W.R	1.5 MAX
Polarization Intensity	R.H.C.P
Axial Ratio	3dB max Mounted on 70mmx70mm ground plane
Antenna size	25254mm
LNA Specification
Frequency range	1575.42Mhz±1.023Mhz
Gain	28±2dB(+25℃±10℃)
Output VSWR	1.5 MAX
Noise Figure	1.5dB Max(+25℃±10℃)@DC3.3V
DC current	TYP 8mA, MAX 12mA@DC3.3V
Main technical specifications
Amplifiers gain	28 dBi
VSWR	1.5 MAX
Working Temp	-40~+85℃
Vibration	Sine sweep Lg(0~p)10~50~10HZ each Axis
Humidity	95%~100%RH
Noise figure (dB)	1.5 max
cable length (mm)	2000±30
connector	Fakra

S.W.R

GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

Radiation Pattern

GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

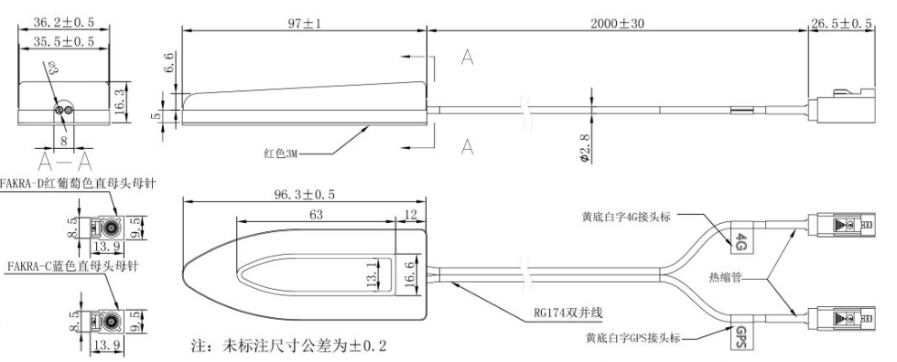

Drawing

GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

Product Tags:

vehicle gps antenna

gps internal antenna

GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black Images
